35g supermicro reconnaissance drone made in China
Pls click or email to
Hummingbird series ultra-micro reconnaissance drone

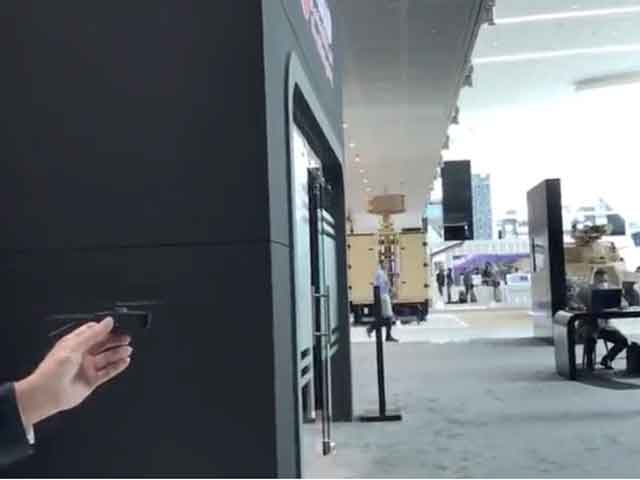

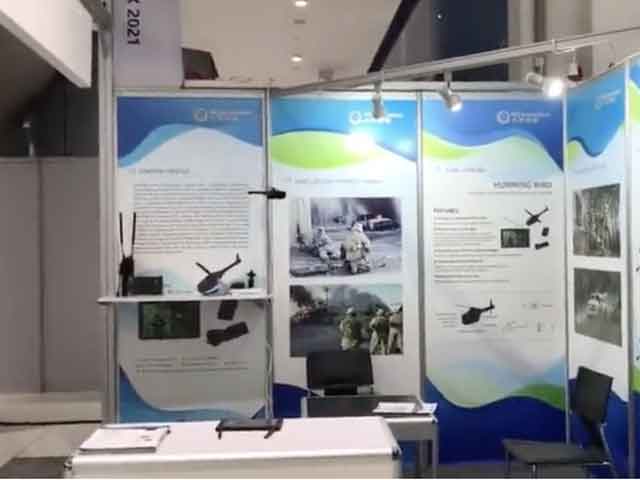

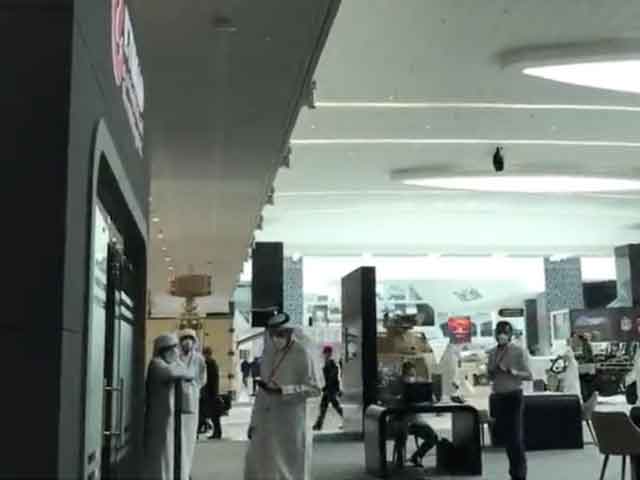

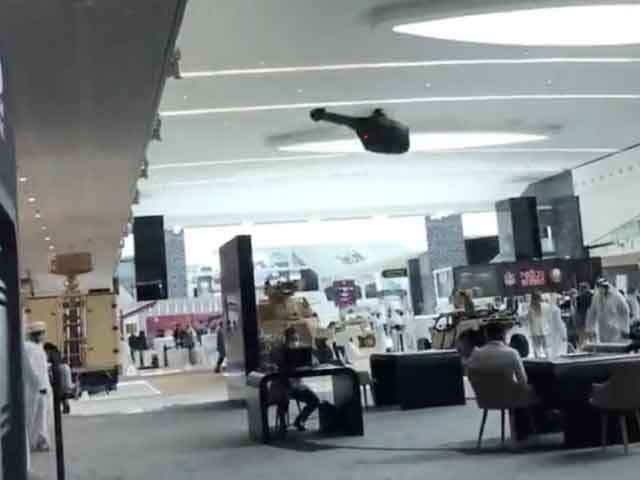

At the 15th Abu Dhabi International Defense Exhibition in February 2021, IREEDA Co., Ltd. brought the Hummingbird series of ultra-micro reconnaissance drones to the exhibition, which attracted the attention of the audience. Bee drone from Prox Dynamics.
The Hummingbird Ultra Micro UAV is ultra-light, ultra-small, and has good low-noise concealment. Its take-off weight is only about 35 grams, which is less than the weight of an egg. The total length including the tail rotor is 174 mm, and it is only as long as a pen. It can realize high-definition real-time image transmission, and the reliable image transmission distance is more than 2km under the condition of visibility. It adopts high-energy density lithium battery, and the maximum flight time exceeds 25 minutes. It is a powerful tool for situational awareness and reconnaissance at the end of the battlefield.
The Hummingbird Ultra Micro UAV is equipped with 4 cameras, that is, a visible light and a thermal imaging camera are installed in the forward horizontal direction, and a visible light lens is installed in the 45-degree direction, which can realize the down-view panoramic image capture at a higher flight altitude. The down-view camera is used for optical flow horizontal positioning, and the four-way micro TOF lidar can effectively and intelligently avoid obstacles.
Compared to Blackhornet, hummingbirds fly safer and smarter. At the same time, the link function is also more powerful. It can support 1080p real-time video backhaul at most, and support the bee group network technology. Currently, it can support 16 aircraft formations. The ground station can be connected to a tactical command system such as ATAK, and the command center can remotely grasp the terminal information status of the battlefield in real time, improving the accuracy and efficiency of command and decision-making.
Bee Micro Drone
The bee drone is developed and produced by the Norwegian company Prox Dynamics AS. Although the bee drone looks like a toy in appearance, it performs well in actual combat.

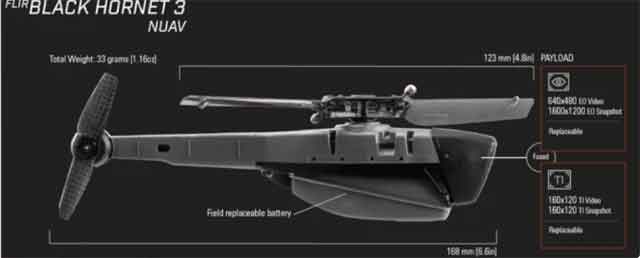

The latest improved "Black Bee 3" weighs only 33 grams and measures 16.8 cm. Its maximum battery life is 25 minutes, the flight speed is 21 kilometers per hour, and the maximum flight altitude is 120 meters. The head is also equipped with a photoelectric sensor and a thermal imaging device, which can perform surveillance tasks at night, and can perform encrypted video within a range of 2 kilometers. transmission.

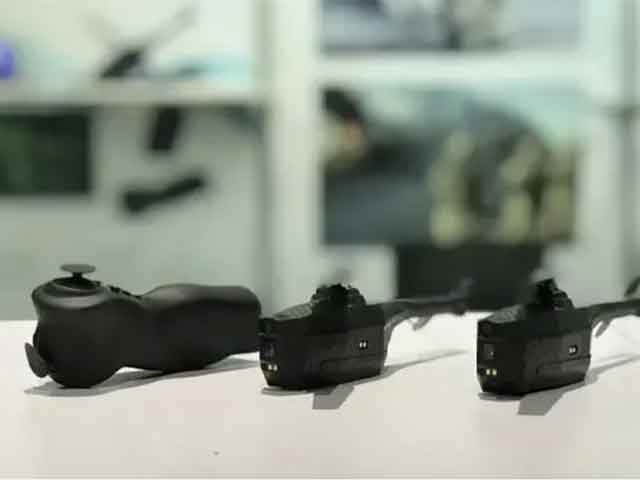

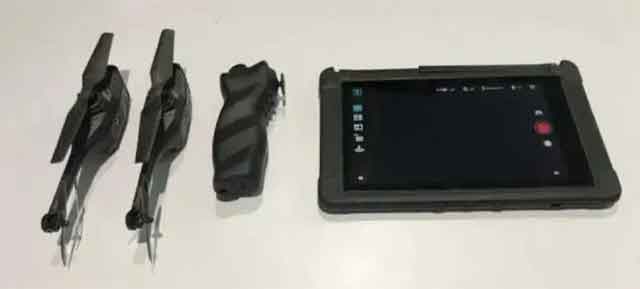

The Bee P-100 system is very simple. It consists of two drones and a single remote control terminal. In addition to the multi-function display, the terminal also has a joystick similar to a TV remote control, which can be operated by only one person.
